C# Client Library
A C# Client Library for the AnalyzeRe REST API
AnalyzeRe.Layers.Nested Class Reference

Allows one or more source layers or layer_views to be attached as loss sources to some other layer definition (sink), producing a new layer. More...

Classes

class  Sources
 A wrapper for a List<T> of IReference<ILayerSource> references that simplifies the construction and use of a set of nested sources references. More...


Public Member Functions

 Nested ()
 Construct a new Nested Layer with the default perspective and empty list of source layers. More...

virtual T ShallowCopy< T > ()
 Create a shallow copy of this object.

See also
ExtensionMethods.DeepCopy<T>

for a serializer-based copy method. More...



Public Attributes

override string collection_name => CLASS_COLLECTION_NAME
 The collection endpoint at which resources of this type reside on the server. More...

string Path => API.GetResourcePath(this)
 The relative path to this endpoint from the root URL. More...

string type => TypeResolver.GetTypeNameForAPIType(GetType())
 The server name for this type of resource. More...


Static Public Attributes

static string APITypeName
 Can be used to get the API type name in a static context. More...

static readonly string CLASS_COLLECTION_NAME = "layers"
 The collection endpoint at which resources of this type reside on the server. More...


Protected Member Functions

virtual void AfterMembersCloned (APIType originalResource)
 Invoked following construction if the current instance has been created using a member-wise clone of some other instance. Override if your derived APIType class contains some members that should not be cloned. More...


Properties

DateTime created [get, set]
 The date and time when the resource was created on the system. More...

string description [get, set]
 A user-friendly description of the resource. More...

string id [get, set]
 The resource's unique identifier. It will be used in the request URL when requesting the resource from the server. More...

Dictionary< string, object > meta_data [get, set]
 Any user-defined metadata for this layer. More...

DateTime modified [get, set]
 The date and time when the resource was last modified on the system. More...

IReference< ILayerSourcesink [get, set]
 The layer that will take on the sources' forwarded losses. More...

Sources sources [get, set]
 A list of the source layers forwarding losses to this layer. More...


Detailed Description

Allows one or more source layers or layer_views to be attached as loss sources to some other layer definition (sink), producing a new layer.

This layer supports different reference types depending on its use. When saving a Nested layer to the /layers/ endpoint, the layer can only contain "pure" (non-inlined) references to other previously saved layers. When using a Nested layer instance as a ILayerView.layer value, sink and sources can be either Layer or LayerView references, as well as inlined Layer definitions (i.e. Layers without saved ids converted to references).

Definition at line 21 of file Nested.cs.

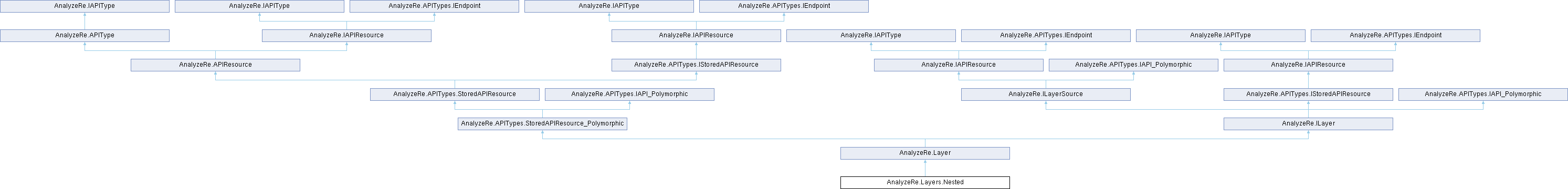

Inheritance diagram for AnalyzeRe.Layers.Nested:
AnalyzeRe.Layer AnalyzeRe.APITypes.StoredAPIResource_Polymorphic AnalyzeRe.ILayer AnalyzeRe.APITypes.StoredAPIResource AnalyzeRe.APITypes.IAPI_Polymorphic AnalyzeRe.ILayerSource AnalyzeRe.APITypes.IStoredAPIResource AnalyzeRe.APITypes.IAPI_Polymorphic AnalyzeRe.APIResource AnalyzeRe.APITypes.IStoredAPIResource AnalyzeRe.IAPIResource AnalyzeRe.IAPIResource AnalyzeRe.APIType AnalyzeRe.IAPIResource AnalyzeRe.IAPIResource AnalyzeRe.IAPIType AnalyzeRe.APITypes.IEndpoint AnalyzeRe.IAPIType AnalyzeRe.APITypes.IEndpoint AnalyzeRe.IAPIType AnalyzeRe.IAPIType AnalyzeRe.APITypes.IEndpoint AnalyzeRe.IAPIType AnalyzeRe.APITypes.IEndpoint

Constructor & Destructor Documentation

AnalyzeRe.Layers.Nested.Nested ( )
inline

Construct a new Nested Layer with the default perspective and empty list of source layers.

Definition at line 57 of file Nested.cs.

Member Function Documentation

virtual void AnalyzeRe.APIType.AfterMembersCloned ( APIType  originalResource)
inlineprotectedvirtualinherited

Invoked following construction if the current instance has been created using a member-wise clone of some other instance. Override if your derived APIType class contains some members that should not be cloned.

Overriding implementations should be sure to invoke base.AfterMembersCloned().

A sane question for a code reviewer to ask might be: "Why not avoid copying those members in the first place?" The answer is that there is no framework-supported method of excluding members from a MemberwiseClone. The only officially supported solution is to not use the object.MemberwiseClone method at all and instead have each class implement it's own Copy method. In our case, most objects have no need to specialize their copy implementation (even though they could - the ShallowCopy<T> method is marked virtual). It's simpler to simply "correct" any special-case members after the fact, and requires less error-prone code than if the code were responsible for ensuring no members were missed in a copy. It's also faster than any reflection-based approach, even though such an approach could benefit from custom attributes meant to exclude certain members from copying.

Reimplemented in AnalyzeRe.APIResourceView.BaseAPIResourceView, AnalyzeRe.Optimization.OptimizationView, AnalyzeRe.Optimization.Candidate, AnalyzeRe.StaticSimulation, AnalyzeRe.Distributions.CustomDistribution, AnalyzeRe.LossSets.LossSet_WithData, and AnalyzeRe.APITypes.APIResource_WithDataEndpoint.

Definition at line 37 of file APIType.cs.

virtual T AnalyzeRe.APIType.ShallowCopy< T > ( )
inlinevirtualinherited

Create a shallow copy of this object.

See also
ExtensionMethods.DeepCopy<T>

for a serializer-based copy method.

Returns
A shallow copy of this object.

If this object contains any members that reference the current object (this), the class should override this method to avoid cloning a reference to the old class.

Implements AnalyzeRe.IAPIType.

Type Constraints
T :IAPIType

Definition at line 14 of file APIType.cs.

Member Data Documentation

string AnalyzeRe.APITypes.StoredAPIResource_Polymorphic.APITypeName
staticinherited
Initial value:
=> TypeResolver.GetTypeNameForAPIType(
MethodBase.GetCurrentMethod().DeclaringType)

Can be used to get the API type name in a static context.

Definition at line 17 of file StoredAPIResource_Polymorphic.cs.

readonly string AnalyzeRe.Layer.CLASS_COLLECTION_NAME = "layers"
staticinherited

The collection endpoint at which resources of this type reside on the server.

Definition at line 15 of file Layer.cs.

override string AnalyzeRe.Layer.collection_name => CLASS_COLLECTION_NAME
inherited

The collection endpoint at which resources of this type reside on the server.

Definition at line 18 of file Layer.cs.

string AnalyzeRe.APIResource.Path => API.GetResourcePath(this)
inherited

The relative path to this endpoint from the root URL.

Exceptions
System.ArgumentExceptionIf this resource does not have an id.

Definition at line 27 of file APIResource.cs.

string AnalyzeRe.APITypes.StoredAPIResource_Polymorphic.type => TypeResolver.GetTypeNameForAPIType(GetType())
inherited

The server name for this type of resource.

Definition at line 13 of file StoredAPIResource_Polymorphic.cs.

Property Documentation

DateTime AnalyzeRe.APITypes.StoredAPIResource.created
getsetinherited

The date and time when the resource was created on the system.

Definition at line 19 of file StoredAPIResource.cs.

string AnalyzeRe.APITypes.StoredAPIResource.description
getsetinherited

A user-friendly description of the resource.

Definition at line 14 of file StoredAPIResource.cs.

string AnalyzeRe.APIResource.id
getsetinherited

The resource's unique identifier. It will be used in the request URL when requesting the resource from the server.

Definition at line 16 of file APIResource.cs.

Dictionary<string, object> AnalyzeRe.APITypes.StoredAPIResource.meta_data
getsetinherited

Any user-defined metadata for this layer.

Definition at line 30 of file StoredAPIResource.cs.

DateTime AnalyzeRe.APITypes.StoredAPIResource.modified
getsetinherited

The date and time when the resource was last modified on the system.

Definition at line 24 of file StoredAPIResource.cs.

IReference<ILayerSource> AnalyzeRe.Layers.Nested.sink
getset

The layer that will take on the sources' forwarded losses.

If the reference type (Layer or LayerView) isn't specified, the server will assume that it is a layer reference.

When persisting (POSTing) Nested layers (i.e. to the /layers/ endpoint), only references to other saved Layers are supported. "Inlined" layer references and references to LayerViews are allowed only when this layer is part of a ILayerView<Nested> definition.

Definition at line 33 of file Nested.cs.

Sources AnalyzeRe.Layers.Nested.sources
getset

A list of the source layers forwarding losses to this layer.

When persisting (POSTing) layers of this type (i.e. to the /layers/ endpoint), only "pure" Layer references are supported. "inlined" references (e.g. nested layer definitions without an saved id) are allowed only when this layer is part of a ILayerView<Nested> definition.

Definition at line 43 of file Nested.cs.


The documentation for this class was generated from the following file:
